LPD Orin Nano
SOC：Jetson Orin Nano
存储组合：Orin Nano 4GB / 8GB
产品尺寸：200mm(L)*120mm(W)*82.2mm(H)
产品介绍：LPD Orin Nano具备多样化接口，提供9~90V/3A宽压输入，3路USB3.0，1路USB2.0接口提供灵活的数据传输和设备扩展，1路TYPE-C Recovery接口。2路1000M以太网接口，支持稳定的网络连接。1路HDMI接口，支持4K60fps视频输出，1路MIC和1路Line输出满足音频采集和播放需求。板载1路mini-PCIe接口，2路M.2接口，可扩展连接4G/5G模块，扩展外接NVMe协议SSD。板载WIFI模块，支持WIFI6，BT5.4，提供高速无线连接。支持3路CANBUS、4路RS485等通讯模块接口。

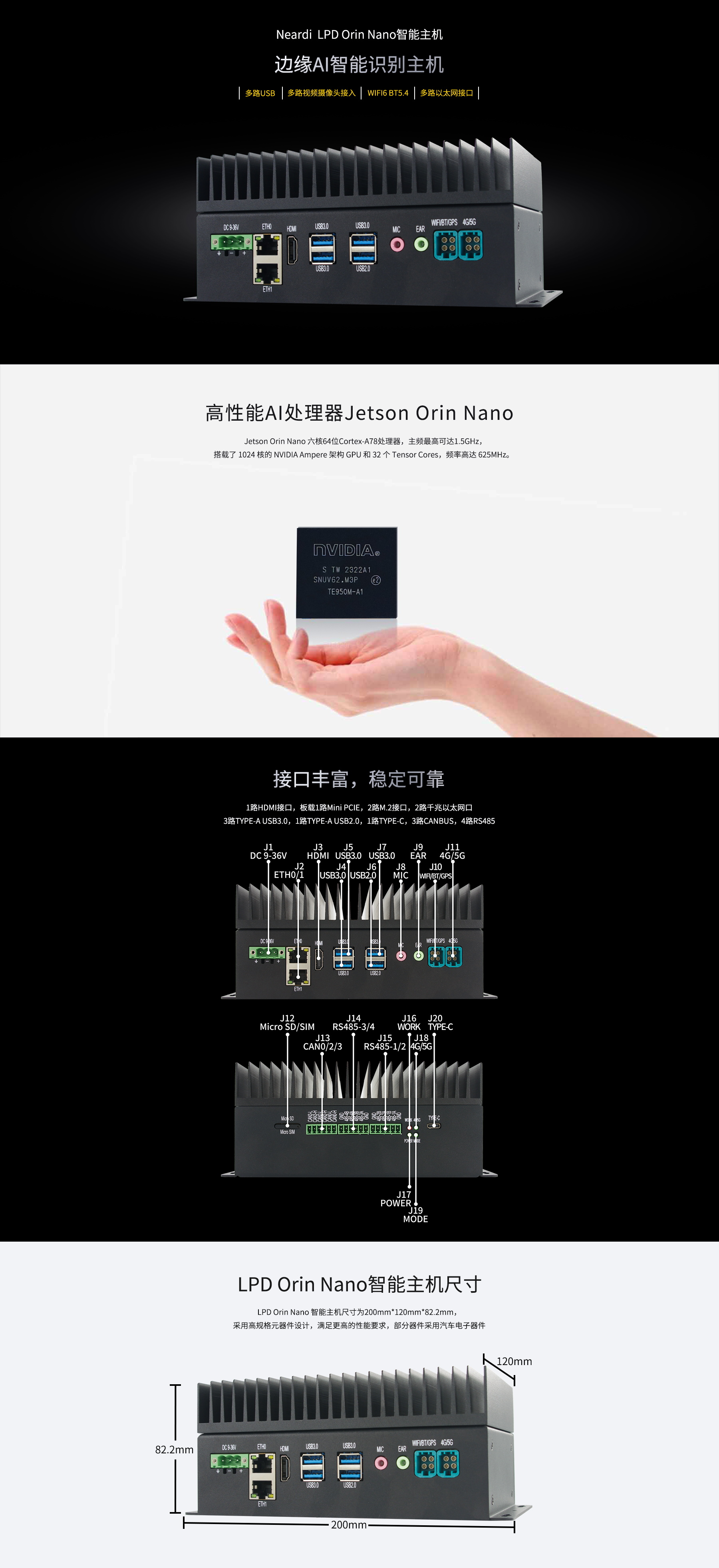

Part reference | Part Name | Part Specifications | Port Description |
J1 | Power Switch | Push-button switch | Key for system power |
J2 | DC 9-36V | KF2EDGRM 5.08mm pitch 3pin | Main power supply, DC9-36V |
J3 | ETH0/1 | Gigabit Ethernet | 10/100/1000-Mbps data transfer rates |
J4 | HDMI | Type-A HDMI | HDMI2.0 Out |
J5 | USB3.0 | Type-A USB3.0 | USB3.0 |
J6 | USB3.0 | Type-A USB3.0 | USB3.0 |
J7 | USB2.0 | Type-A USB2.0 | USB2.0 |
J8 | USB3.0 | Type-A USB3.0 | USB3.0 |
J9 | MIC | φ3.5mm 3-L Jack | Micphone In |
J10 | LINE | φ3.5mm 3-L Jack | L/R audio out |
J11 | WIFI/GPS ANT | Fakra 4pin | Antenna1 for WiFi/BT/GPS |
J12 | 5G ANT | Fakra 4pin | Antenna1 for 5G |
J13 | MIcro SD/SIM | Push-Push SD and SIM socket | SD and SIM Card |
J14 | CAN 0/2/3 | KF2EDGR 3.5mm 6pin wafer | CAN signals |
J15 | RS485 3/4 | KF2EDGR 3.5mm 6pin wafer | RS485 signals |
J16 | RS485 1/2 | KF2EDGR 3.5mm 6pin wafer | RS485 signals |
J17 | work LED | Red Led | Work status and 3G/4G Module Status Indicator |
J18 | Power LED | Green Led | Power status indicate |
J19 | 4G/5G LED | Green LED | 4G/5G Module Status Indicator |
J20 | Mode LED | Green LED | Function definition indicator |
J21 | USB TYPE-C | Type-C Socket | Type-C with USB3.0 or Display port / Recovery Port |
J22 | GMSL Camera reserved | FAKRA,R/A PCB-3 Z型 | GMSL camera interface reserved |
J23 | GMSL OUT reserved | FAKRA,R/A PCB-3 Z型 | GMSL output interface reserved |
