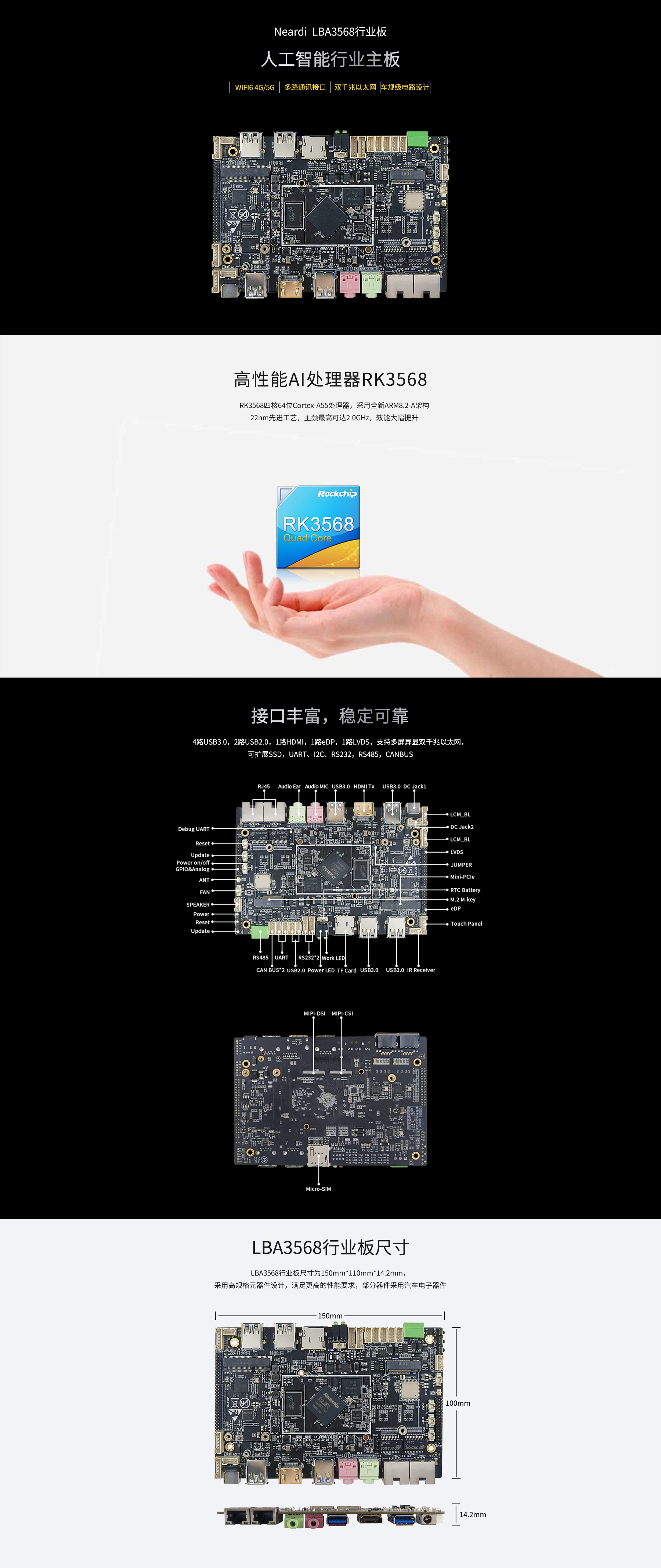

LBA3568
SOC :RK3568
存储组合 :2+16 GB / 4+16 GB/ 4+32 GB
产品尺寸 :160mm(L)*115mm(W)*25.7mm(H)
产品介绍 :LBA3568是一款高性能计算板卡，具备丰富的接口和强大的扩展能力。它拥有3个USB 3.0 HOST接口和1个USB 3.0 OTG接口，支持连接多路USB摄像头；同时提供2个USB 2.0 HOST接口，用于连接其他USB设备。此外，板卡还配备了1个mini-PCIe接口，不仅可以外接4G模块，还能连接基于RK1808芯片的NPU计算卡，实现高达3.0TOPS的人工智能视觉计算能力。
| 基本参数 | |
| SOC | RK3568,22nm,四核64位Cortex-A55，主频最高2.0GHz |
| GPU | ARM G52 2EE, OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, high quality 2D Graphics Engine build in |
| NPU | up to 1 TOPS; INT8/INT16/FP16/BFP16 MAC hybrid operation supported；TensorFlow, TF-lite, Pytorch, Caffe, ONNX, MXNet, Keras, Darknet deep-learning frameworks supported |
| VPU | 4K VP9 and 4K H265 up to 60fps video decoding |
| 1080P up to 100fps H265/H264 video encoding | |
| 8M ISP with HDR | |
| DDR | LPDDR4，可选1GB/2GB/4GB/8GB(Optional) |
| eMMC | eMMC 5.1，可选8GB/16GB/32GB/64GB/128GB (Optional) |
| PMU | RK806 |
| 系统 | Android / Ubuntu / Buildroot / Debian |
| 硬件参数 | |
| Power | DC12V - 2A (DC Jack 5.5*2.1mm / PH2.0 wafer connector) |
| USB | 1*Type-A USB3.0 OTG+3*Type-A USB3.0 HOST + 2*4Pin PH2.0 USB2.0 HOST connector |
| Display | Type-A HDMI 2.0 up to 4K@60fps |
| Duel channel LVDS up to 1080P@60HZ | |
| Audio | φ3.5mm earphone Jack with L/R audio out |
| φ3.5mm micphone Jack with Mic in | |
| 2x 2.7W ClassD audio Output | |
| Camera | 1x MIPI-CSI Camera Interface |
| PCIe | mini PCIe for 2G/3G/4G LTE module |
| M.2 | M.2 NGFF ( M-KEY ) PCIE V2.1 x4 with NVMe SSD supported |
| SD card | Compatible with SDIO 3.0 protocol, system boot up supported |
| SIM card | Micro sim slot for Mini-PCIe 4G LTE module |
| Serial port | 2x Uart, 2x RS232, 1x RS485, 1x CAN BUS |
| Keys | 3x keys (power, reset, update) |
| Net work | 10/100/1000Mbps Ethernet (Realtek RTL8211E) |
| Wi-Fi 2.4GHz/5GHz,802.11a/b/g/n/ac,up to 433 Mbps (AP6275SR3) | |
| BT V5.0 with BLE supported | |
| 2G/3G/4G LTE module supported (optional) | |
| Storage | MicroSD (TF) Card Compatible with SDIO3.0 |
| 其他参数 | |
| 尺寸 | L*W*H(mm) 150*100*14.2 |
| 温度 | 工作温度 -10 - 70℃ |
| 重量 | 约116.5g（不含外设） |
| 功耗 | 典型功耗：4.7W |
