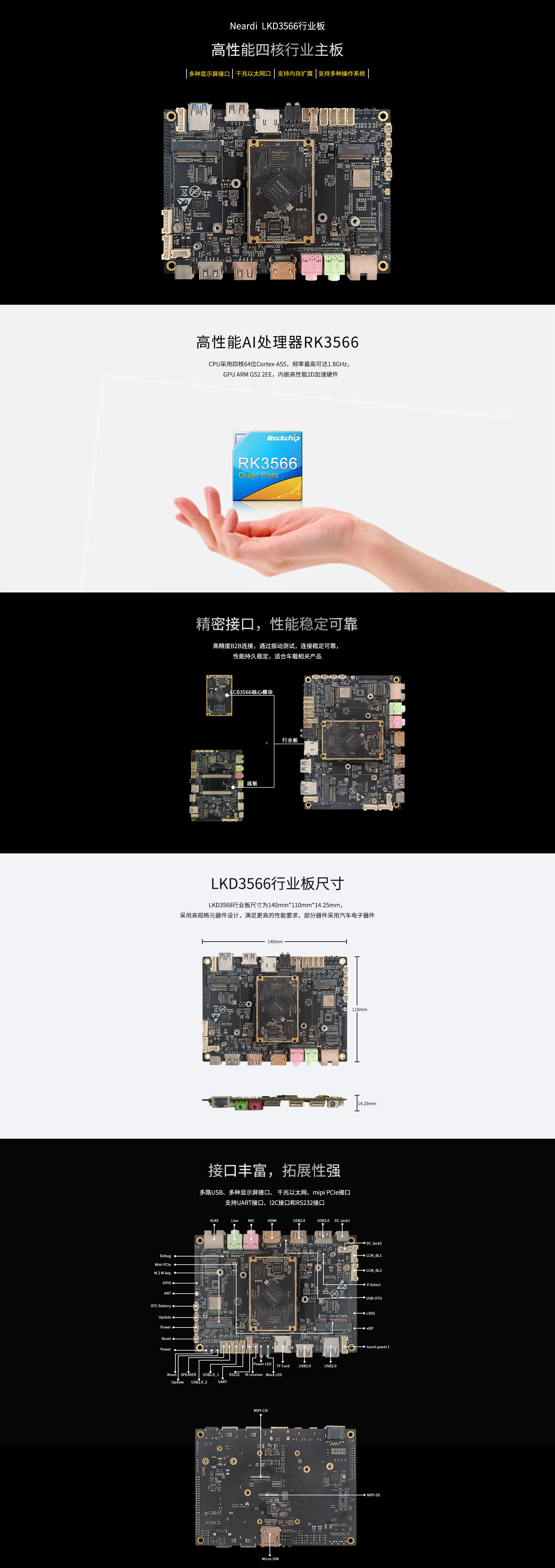

LKD3566
SOC :RK3566
存储组合 :2+16 GB / 4+16 GB/ 8+32 GB
产品尺寸 :140mm(L)*100mm(W)*14.25mm(H)
产品介绍 :LKD3566具有小巧轻薄的设计，丰富的接口，包括1路USB 3.0 HOST、4路USB 2.0 HOST和1路USB 2.0 OTG，支持多个USB摄像头接入；1个mini-PCIe接口，可用于外接4G模块。此外，LKD3566还支持双频WIFI 5、蓝牙5.0、1000M以太网以及UART、I2C、RS232等通讯接口，同时提供1路HDMI输出、1路双通道LVDS和1路eDP接口等多种显示解决方案。
| 基本参数 | |
| SOC | RK3566，22nm，四核64位Cortex-A55 |
| GPU | ARM G52 2EE, OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, high quality 2D Graphics Engine build in |
| NPU | The build-in NPU supports INT8/INT16/FP16/BFP16 MAC hybrid operation |
| VPU | 4KP60 H.265/H.264/VP9 video decoder |
| 1080P60 H.264/H.265 video encoder | |
| 8M ISP | |
| DDR | LPDDR4/LPDDR4X，可选1GB/2GB/4GB/8GB(Optional) |
| eMMC | eMMC 5.1，可选8GB/16GB/32GB/64GB/128GB(Optional) |
| 系统 | Android / Ubuntu / Buildroot / Debian |
| 硬件参数 | |
| Power | DC12V - 3A (DC Jack 5.5*2.1mm / PH2.0 wafer connector) |
| USB | 1*Type-A USB3.0 HOST, |
| 1*Type-A USB2.0 OTG, | |
| 2*Type-A USB2.0 HOST + 2*wafer USB2.0 HOST | |
| Display output | Type-A HDMI 2.0 up to 4K@60fps |
| MIPI-DSI V1.2 4-Lane LCD up to 1920x1080@60Hz | |
| 1x eDP1.3 4-Lane 2.7Gbps up to 2560x1600@60Hz | |
| Duel channel LVDS up to 1080P@60HZ | |
| Audio | φ3.5mm earphone Jack with L/R audio out |
| φ3.5mm micphone Jack with Mic in | |
| Stereo Speaker output 2.7W@8Ω | |
| HDMI audio out | |
| Display input | MIPI-CSI V1.2 Camera Interface |
| 4 data lanes, 2.5Gbps maximum data rate per lane | |
| Mini-PCIe | 1*mini PCIe for 2G/3G/4G module (USB2.0) |
| M.2 | M.2 NGFF ( M-KEY ) PCIE V2.1 x4 with NVMe SSD supported |
| SD card | Compatible with SDIO 3.0 protocol, system boot up supported |
| SIM card | Micro sim slot for Mini-PCIe 4G LTE module |
| RJ-45 | 1*10/100/1000 Ethernet |
| Others | Uart, CANBUS, I2C, RS232 |
| 其他参数 | |
| 尺寸 | L*W*H(mm) 140*100*14.3 |
| 温度 | 工作温度 -20 - 70℃ |
| 重量 | 约115.3g（不含外设） |
