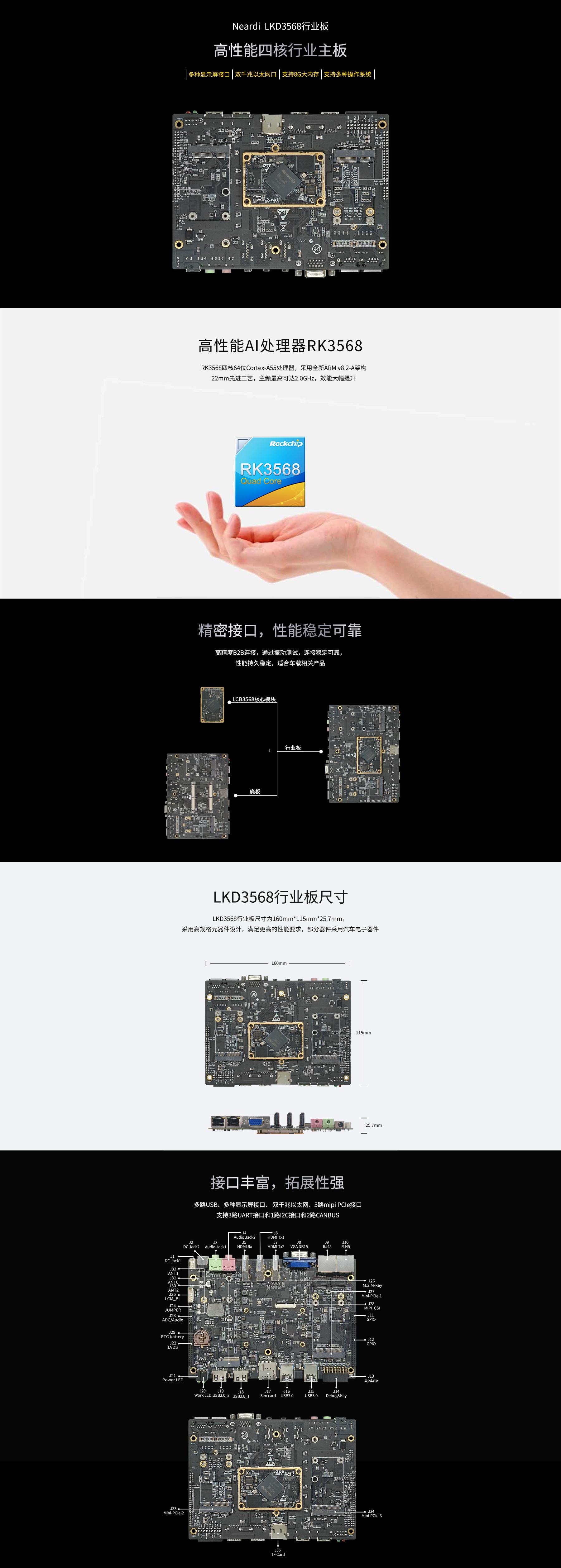

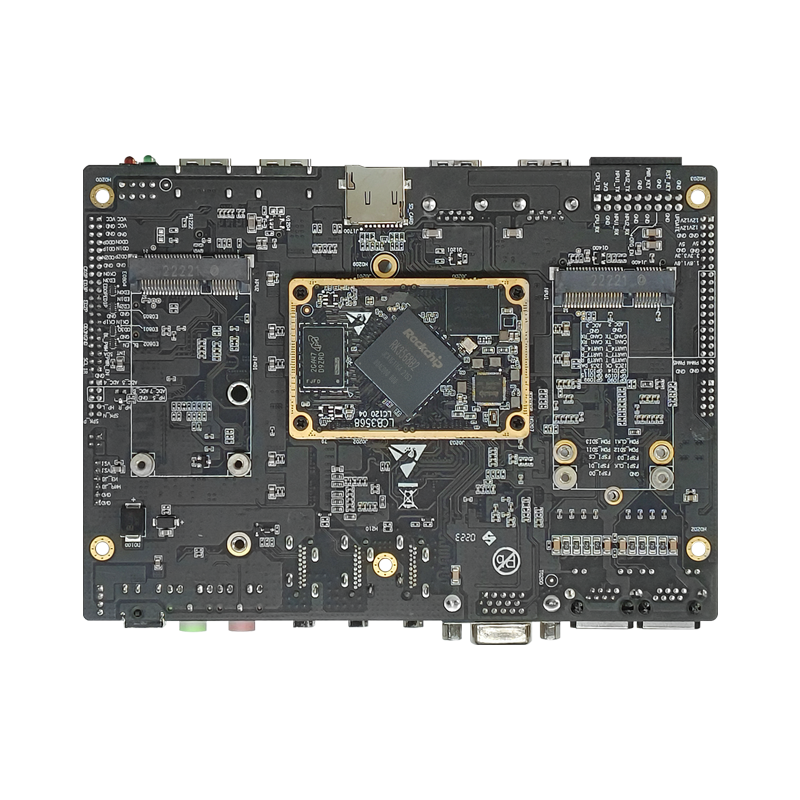

LKD3568
SOC :RK3568
存储组合 :2+16 GB / 4+16 GB/ 4+32 GB
产品尺寸 :160mm(L)*115mm(W)*25.7mm(H)
产品介绍 :LKD3568提供了1路USB 3.0 HOST、1路USB 3.0 OTG和2路USB 2.0 HOST接口,支持连接多个USB摄像头。它还拥有3个mini-PCIe接口,不仅可以外接4G/5G模块,还可以连接基于RK1808的NPU计算卡,与摄像头组合,实现高达6.0TOPS的AI算力。此外,板卡还支持双频WIFI 6、蓝牙5.0、2路1000M以太网以及UART、I2C、CANBUS等通讯接口,以及2路HDMI输出、1路VGA输出和1路双通道LVDS等多种显示接口,支持多屏异显,可选配1路HDMI输入或mipi-csi摄像头输入。
基本参数 | |
SOC | RK3568,22nm,四核64位Cortex-A55,主频最高2.0GHz |
GPU | ARM G52 2EE, OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, high quality 2D Graphics Engine build in |
NPU | up to 1 TOPS; INT8/INT16/FP16/BFP16 MAC hybrid operation supported;TensorFlow, TF-lite, Pytorch, Caffe, ONNX, MXNet, Keras, Darknet deep-learning frameworks supported |
VPU | 4K VP9 and 4K H265 up to 60fps video decoding |
1080P up to 100fps H265/H264 video encoding | |
8M ISP with HDR | |
DDR | LPDDR4,可选1GB/2GB/4GB/8GB(Optional) |
eMMC | eMMC 5.1,可选8GB/16GB/32GB/64GB/128GB (Optional) |
PMU | RK806 |
系统 | Android / Ubuntu / Buildroot / Debian |
硬件参数 | |
Power | DC12V - 3A (DC Jack 5.5*2.1mm / PH2.0 wafer connector) |
USB | 1*Type-A USB3.0 HOST, |
1*Type-A USB3.0 OTG, | |
2*Type-A USB2.0 HOST | |
Display output | Type-A HDMI 2.0 up to 4K@60fps |
Type-A HDMI 1.4 up to 1920*1080@60fps | |
VGA up to 1920*1080@30fps | |
Duel channel LVDS up to 1080P@60HZ | |
Audio | φ3.5mm earphone Jack with L/R audio out |
φ3.5mm micphone Jack with Mic in | |
Speaker output with 1.5W@8Ω | |
HDMI audio out | |
Display input | HDMI Input interface; MIPI-CSI Camera Interface |
Mini-PCIe | 1*mini PCIe for 2G/3G/4G/5G LTE module, |
2*mini PCIe for AI cards | |
SD card | Compatible with SDIO 3.0 protocol, system boot up supported |
SIM card | Micro sim slot for Mini-PCIe 4G LTE module |
RJ-45 | 2*10/100/1000 Ethernet |
RTC | 2Pin GH1.25 connector, RTC power on and off supported |
Others | 3*Uart, 2*CAN BUS, 1*I2C, 6*ADC, 2*PWM, lots of GPIOs |
Power output | 12V, 5V, 3.3V |
Others | 4*ADC, 1*I2C(CTP supported), 4*Switch signal Input, 4*Switch signal Output, |
其他参数 | |
尺寸 | L*W*H(mm) 160*115*25.7 |
温度 | 工作温度 -10 - 70℃ |
重量 | 约171.5g(不含外设) |
功耗 | 典型功耗:4.7W |
