LKD3516CV610
SOC：Hi3516CV610
存储组合：1GB+SPI Flash
产品尺寸：52mm*52mm*11.1mm

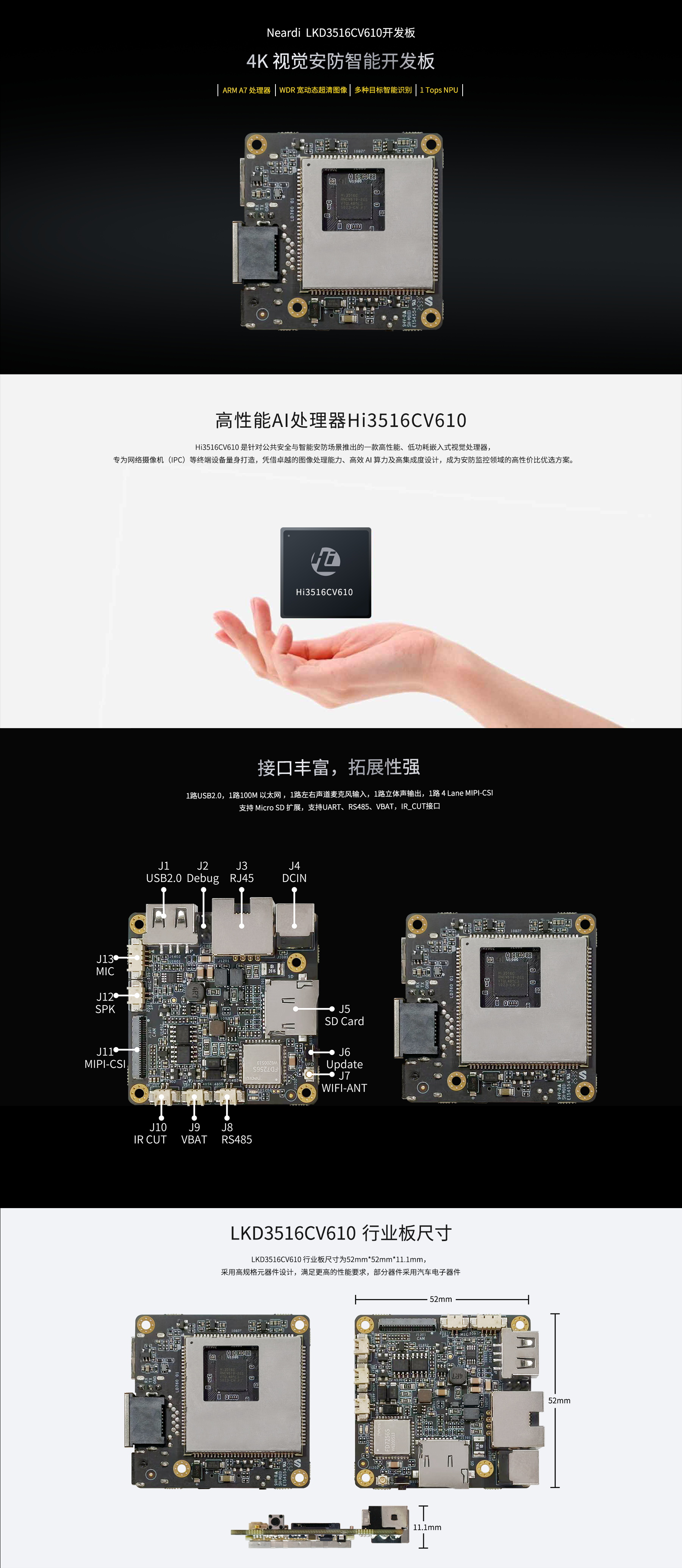

产品介绍：LKD3516CV610，提供12V电源输入，1路100M以太网接口，支持稳定的网络连接。2路左右声道输入和1路立体声音频输出满足音频采集和播放需求。1路USB2.0提供灵活的数据传输和设备扩展。1路MIPI-CSI 4lane摄像头输入，支持IR高清摄像头连接。支持TF Card存储。采用临滴FD7256S WIFI模块支持WIFI6，BT5.4，提供高速无线连接。UART,RS485等通讯串口，满足多种外设连接和工业应用。
| Part reference | Part Name | Part Specifications | Part Description |
| J1 | USB2.0 | Type-A USB2.0 | USB2.0 |
| J2 | Debug | 2.0mm 3Pin header | UART(Debug) signals |
| J3 | RJ45 | Fast Ethernet | 10/100-Mbps data transfer rates |
| J4 | DCIN | DC 5.5*2.0mm | Main power supply, DC12V/2A |
| J5 | SD Card | Push-Push Micro SD socket | Micro SD Card |
| J6 | Update | push-button | Key for system update |
| J7 | WIFI-ANT | I-PXE | WIFI_ANT |
| J8 | RS485 | 1.25mm Pitch 2Pin wafer | RS485 signals |
| J9 | VBAT | 1.25mm Pitch 2Pin wafer | Battery Voltage |
| J10 | IR_CUT | 1.25mm Pitch 2Pin wafer | Infrared Cut |
| J11 | MIPI-CSI | 0.5mm Pitch 30Pin FPC connector | mipi csi 4-lane signals for camera |
| J12 | SPK | 1.25mm Pitch 2Pin wafer | audio Output for Speaker |
| J13 | MIC | 1.25mm Pitch 4Pin wafer | Left&Right Channel Input |
