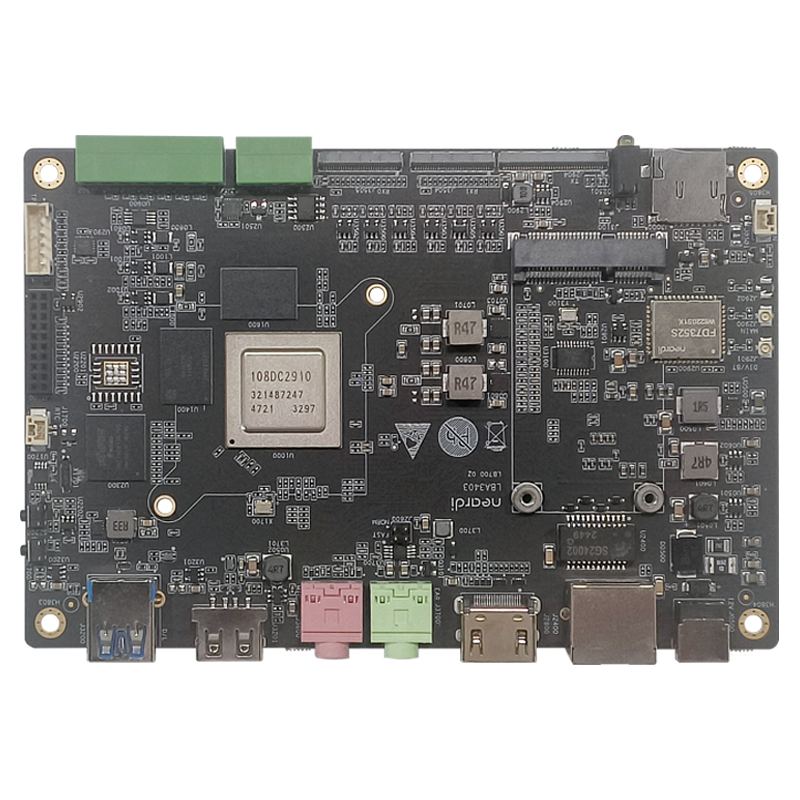

LBA3403
SOC：Hi3403V100
存储组合：4+16GB / 4+32 GB/ 8+64 GB
产品尺寸：150mm(L)*100mm(W)*16.6mm(H)
产品介绍：LBA3403，提供12V3A电源输入，1路1000M以太网接口，支持稳定的网络连接。1路HDMI接口，支持4K60fps视频输出，1路MIC和1路LINE满足音频采集和播放需求。1路USB2.0和1路USB3.0，提供灵活的数据传输和设备扩展。2路MIPI-CSI摄像头输入，支持高清摄像头连接。1路MIPI-DSI，用于连接显示设备。1路mini-PCIe，支持RK1808,3TopsNPU算力扩展。支持WIFI6，BT5.4，提供高速无线连接。3路UART和1路RS485以及GPIO等通讯串口，满足多种外设连接和工业应用。
| Part reference | Part Name | Part Specifications | Part Description |
| J1 | DC Jack | DC 5.5*2.1mm | Main power supply, DC12V – 3A |
| J2 | RJ45 | Gigabit Ethernet | 10/100/1000-Mbps data transfer rates |
| J3 | HDMI | Type-A HDMI connector | HDMI2.0 TX up to 7680x4320@60Hz |
| J4 | LINE | φ3.5mm 3-L Jack | L/R audio out |
| J5 | MIC | φ3.5mm 3-L Jack | Micphone In |
| J6 | USB2.0 | Type-A USB2.0 | USB2.0 |
| J7 | USB3.0 | Type-A USB3.0 | USB3.0 |
| J8 | Update Key | push-button | Key for system recovery or other function |
| J9 | Reset Key | push-button | Key for system reset |
| J10 | RTC Battery | PH2.0mm 2pin wafer | Battery for RTC 3.0V Input |
| J11 | SPI | 2.0mm Pitch 2X10Pin header | - |
| J12 | Touch Panel | PH2.0mm 6pin wafer | power and I2C signals for Touch Panel |
| J13 | UART 0/2/4 | 3.81mm 8pin wafer | 1.8V UART-TTL signals |
| J14 | RS485 | 3.81mm pitch 4Pin Connector | RS485 Bus signals |
| J15 | MIPI-CSI0 | 0.5mm Pitch 30Pin FPC connector | mipi csi 4-lane signals for camera |
| J16 | MIPI-CSI1 | 0.5mm Pitch 30Pin FPC connector | mipi csi 4-lane signals for camera |
| J17 | MIPI-DSI | 0.5mm Pitch 30Pin FPC connector | mipi dsi 4-lane signals for LCM |
| J18 | LED | Red and Green LEDs | Power status indicate LED and diy LED |
| J19 | Micro SD Card | Push-Push Micro SD socket | Micro SD Card |
| J20 | FAN | PH2.0mm 2pin wafer | 12V power output for cooling FAN |
| J21 | WIFI/BT antenna | I-PXE,MHF Φ=2.0 * 2 | Antenna1 for WiFi/BT |
| J22 | Mini-PCIe | Mini-PCIe 52pin socket | USB3.0 signals for NPU module |
