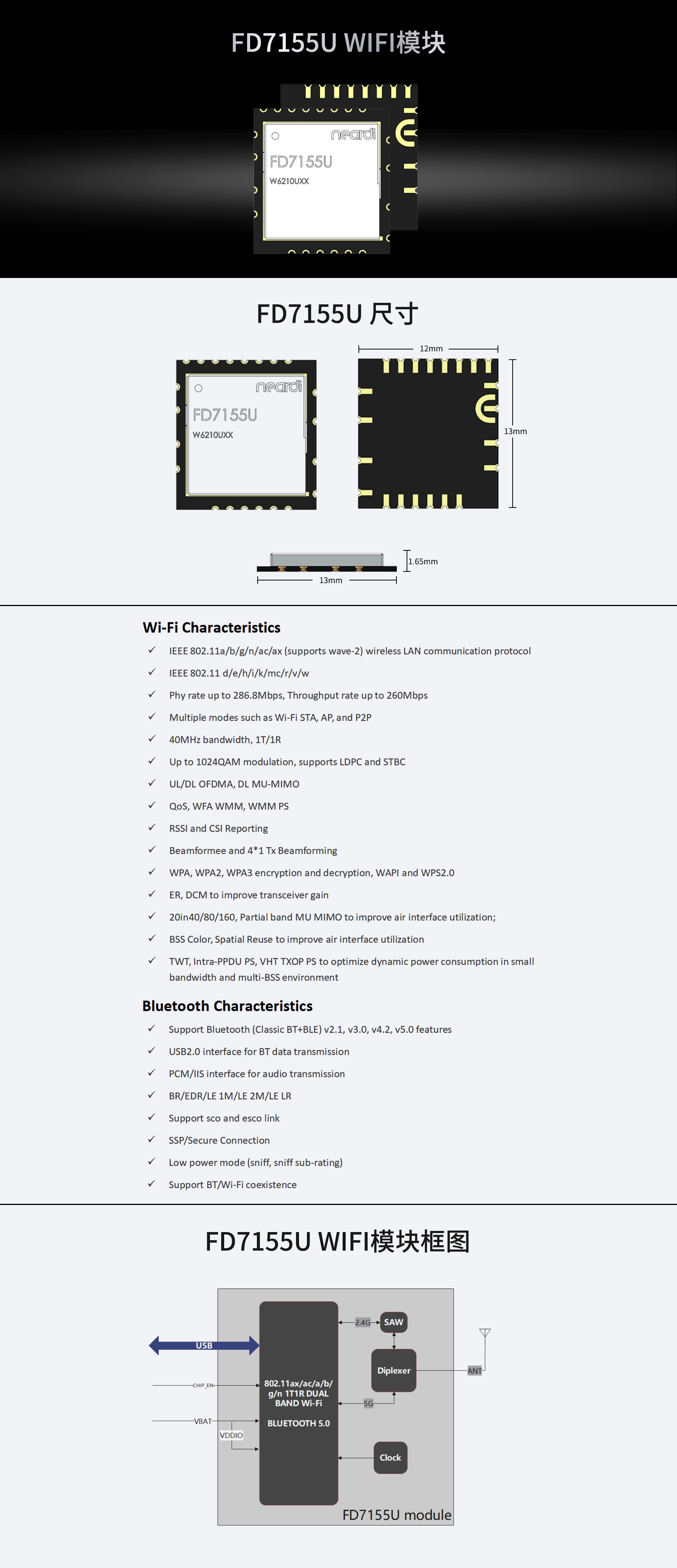

FD7155U
接口:USB
WIFI/蓝牙:WIFI 6 ; BT 5.0
频段:2.4G ; 5G
天线:1T1R
物理层最大传输速率:286.8Mbps
带宽:40M
吞吐速率:260Mbps
认证:SRRC/ROHS/CE/FCC
尺寸:13mm*12.2mm
Product Name | FD7155U | ||
Product description | 802.11ax/ac/a/b/g/n 1T1R dual band Wi-Fi and Bluetooth 5.0 comb module | ||
Dimension | 13(±0.1)mm*12.2(±0.1)mm*1.65(±0.2)mm | ||
Power supply | VBAT:3.0~3.6V | ||
Host interface | USB2.0 | ||
Footprint | LCC 22pin | ||
Operating temperature | -30°C to 70°C | ||
Operating humidity | 10% to 90% (Non-Condensing) | ||
Storage temperature | - 40°C to 85°C | ||
Pin Number | Pin Name | Pin Type | Pin Description |
1 | GND | G | Ground connections |
2 | WL_BT_ANT | RF | RF I/O port |
3 | NC | - | Floating (Don’t connected to ground) |
4 | GND | G | Ground connections |
5 | NC | - | Floating (Don’t connected to ground) |
6 | NC | - | Floating (Don’t connected to ground) |
7 | NC | - | Floating (Don’t connected to ground) |
8 | NC | - | Floating (Don’t connected to ground) |
9 | NC | - | Floating (Don’t connected to ground) |
10 | NC | - | Floating (Don’t connected to ground) |
11 | VBAT | P | Main power voltage source input |
12 | USB_DM | I/O | USB Transmitter/Receiver Differential Pair |
13 | USB_DP | I/O | USB Transmitter/Receiver Differential Pair |
14 | GND | G | Ground connections |
15 | NC | - | Floating (Don’t connected to ground) |
16 | NC | - | Floating (Don’t connected to ground) |
17 | NC | - | Floating (Don’t connected to ground) |
18 | CHIP_EN | I | Module enable signal |
19 | NC | - | Floating (Don’t connected to ground) |
20 | NC | - | Floating (Don’t connected to ground) |
21 | NC | - | Floating (Don’t connected to ground) |
22 | NC | - | Floating (Don’t connected to ground) |
