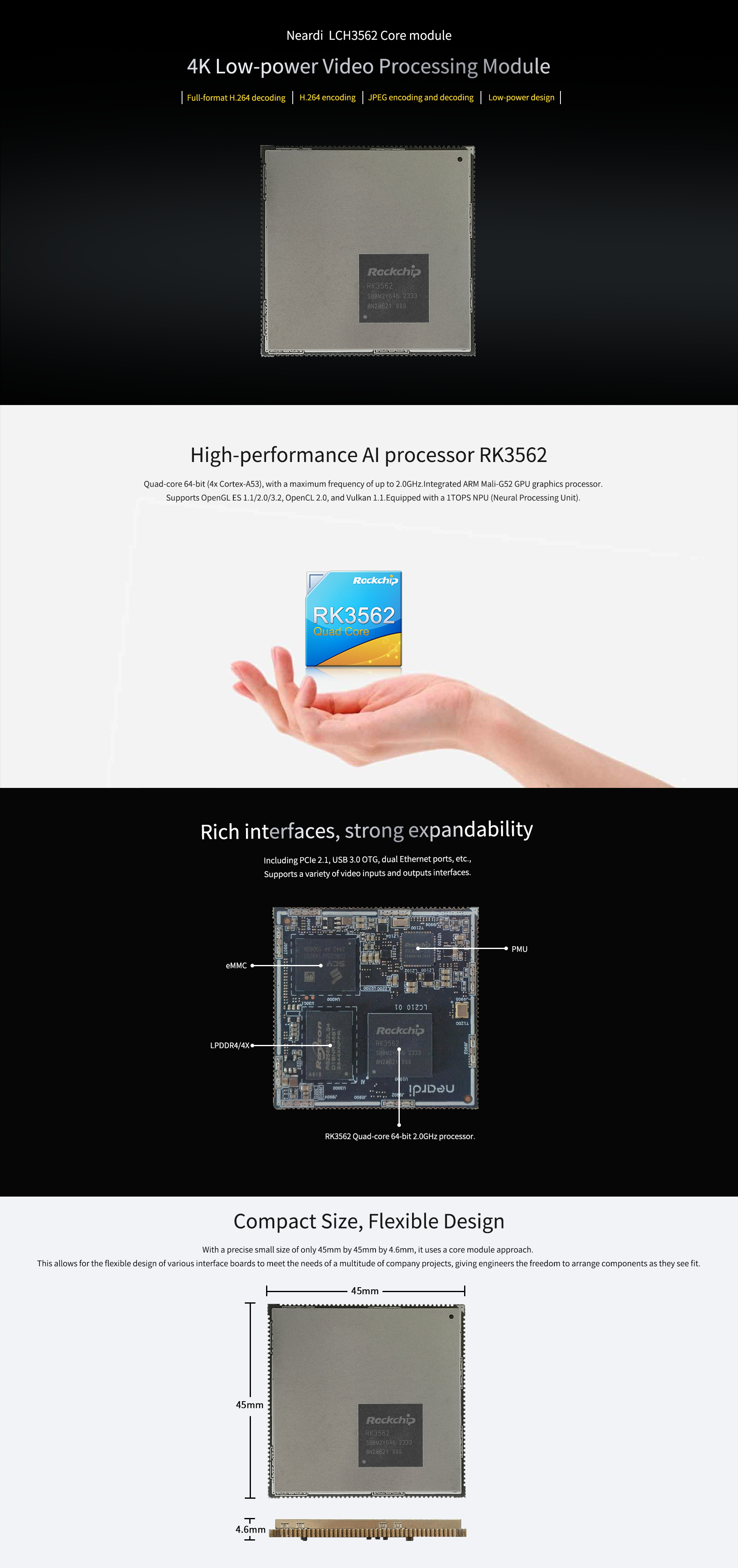

LCB3562
SOC：RK3562
Storage：2+16GB/4+32GB/8+32GB
Size：45mm(L)*45mm(W)*4.6mm(H)
Product：The LCB3562 includes the CPU, DDR, eMMC, and PMU sections. The DDR uses the mainstream market model LPDDR4/LPDDR4X, with lower power consumption and faster frequency, available in 2GB/4GB/8GB configurations; the eMMC adopts the high-speed eMMC 5.1 standard, available in 16GB/32GB options. The LCB3562 core module supports a variety of video codecs, including H.264, H.265, and VP9, with a maximum support for 4K@30fps video decoding and 1080p@60fps video encoding. It has high-quality JPEG encoding and decoding capabilities. In terms of display, the RK3562 supports MIPI-DSI, LVDS, and RGB video outputs, capable of supporting resolutions up to 2048x1080@60Hz. It boasts a rich set of peripheral interfaces, including PCIe2.1, USB3.0 OTG, dual Ethernet ports, CANFD interfaces, etc., to meet diverse peripheral expansion needs.
| Basic parameters | |
| SOC | RK3562; Quad-core 64-bit architecture processor (4*A53 2.0GHz) |
| GPU | ARM Mali-G52 GPU; OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, and Vulkan 1.1; 2D hardware engine maximizes display performance and ensures smooth operation |
| NPU | 1 TOPS computing power; supports int4/int8/int16/FP16 |
| VPU | Supports 1080p@60fps H.264 decoding for almost all formats, supports 4K@30fps H.265 decoding |
| Supports 1080p@60fps H.264 encoding | |
| DDR | LPDDR4/LPDDR4X, with options for 2GB/4GB/8GB |
| eMMC | eMMC 5.1, with options for 16GB/32GB |
| PMU | RK809 |
| OS | Android / Ubuntu / Buildroot / Debian |
| Hardware parameters | |
| Video Input interface | MIPI interface : |
| 1 * MIPI(4 lanes) | |
| 2 * MIPI(2 lanes) | |
| VICAP interface: | |
| RX raw8/raw10/raw12 | |
| Display interface | RGB up to 2048*1080@60Hz |
| BT.656 up to 576 P/I output | |
| BT.1120 up to 1080 P/I output | |
| MIPI DSI TX up to 2048x1080@60Hz | |
| LVDS up to 800x1280@60Hz | |
| Audio interface | SAI(Serial Audio Interface) |
| SPDIF Support two 16-bit audio data store together in one 32-bit wide location | |
| PDM Up to 8 channels | |
| Digital Audio Codec | |
| Video Output Processor | Video output, up to 2048x1080@60Hz resolution |
