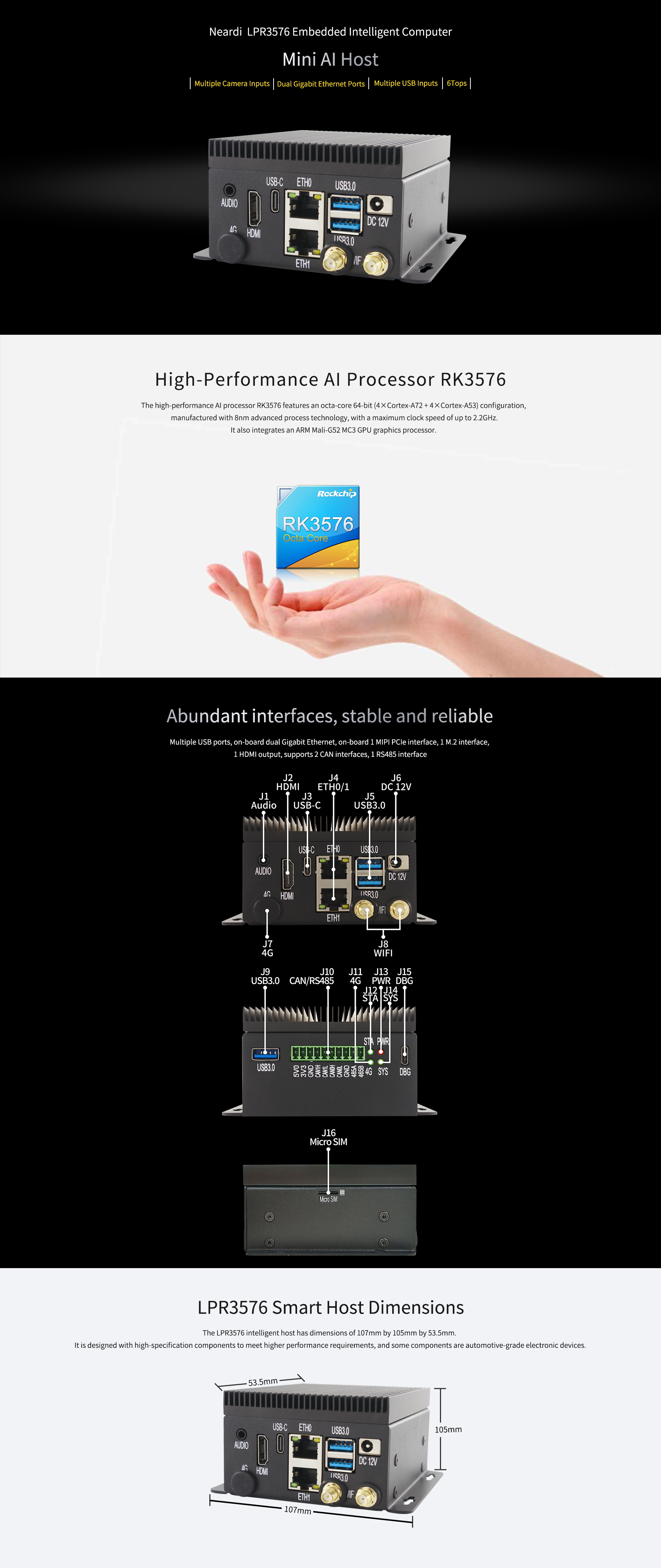

LPP3576
SOC：RK3576
Storage：4+8GB/8+16GB/16+32GB
Size：107mm(L)*105mm(W)*53.5mm(H)
Product：The LPP3576 features a variety of interfaces, including 3 Type-A USB 3.0 ports and 2 Type-C USB ports; it has 1 onboard mini-PCIe interface for external 4G/5G modules; it reserves an eMMC connector and UFS socket, 1 M.2 key M interface for 2242 SSD storage expansion; it supports dual-band WiFi 6 and BT 5.4; it has 2 Gigabit Ethernet ports, RS485, CANBUS, 5V and 3.3V OUT, and other common interfaces, supporting 1 HDMI output.
| Part reference | Part Name | Part Specifications | Part Description |
| J1 | AUDIO | φ3.5mm 3-L Jack | L/R audio out |
| J2 | HDMI | Type-A HDMI | HDMI Tx |
| J3 | USB-C | Type-C Socket | Type-C with USB3.0 |
| J4 | ETH0/1 | Gigabit Ethernet | 10/100/1000-Mbps data transfer rates |
| J5 | USB3.0 | Type-A USB3.0 | USB3.0 |
| J6 | DC 12V | DC 5.5*2.1mm | Main power supply, DC12V – 3A |
| J7 | WIFI | ANT_JACK | WIFI ANT |
| J8 | 4G | ANT_JACK | 4G ANT |
| J9 | USB3.0 | Type-A USB3.0 | USB3.0 |
| J10 | CAN/RS485 | 3.5mm 10pin wafer | CANBUS and RS485 Bus signals |
| J11 | 4G | Green LED | 3G/4G Module Status Indicator |
| J12 | STA | Green LED | Work status Status Indicator |
| J13 | PWR | Red LED | Power status indicate |
| J14 | SYS | Green LED | SYS status indicate |
| J15 | DBG | Type-C Socket | USB 2.0 Debug |
| J16 | Micro SIM | Push-Push Micro SIM Socket | For Micro SIM Card (1.8/3.3V) |
