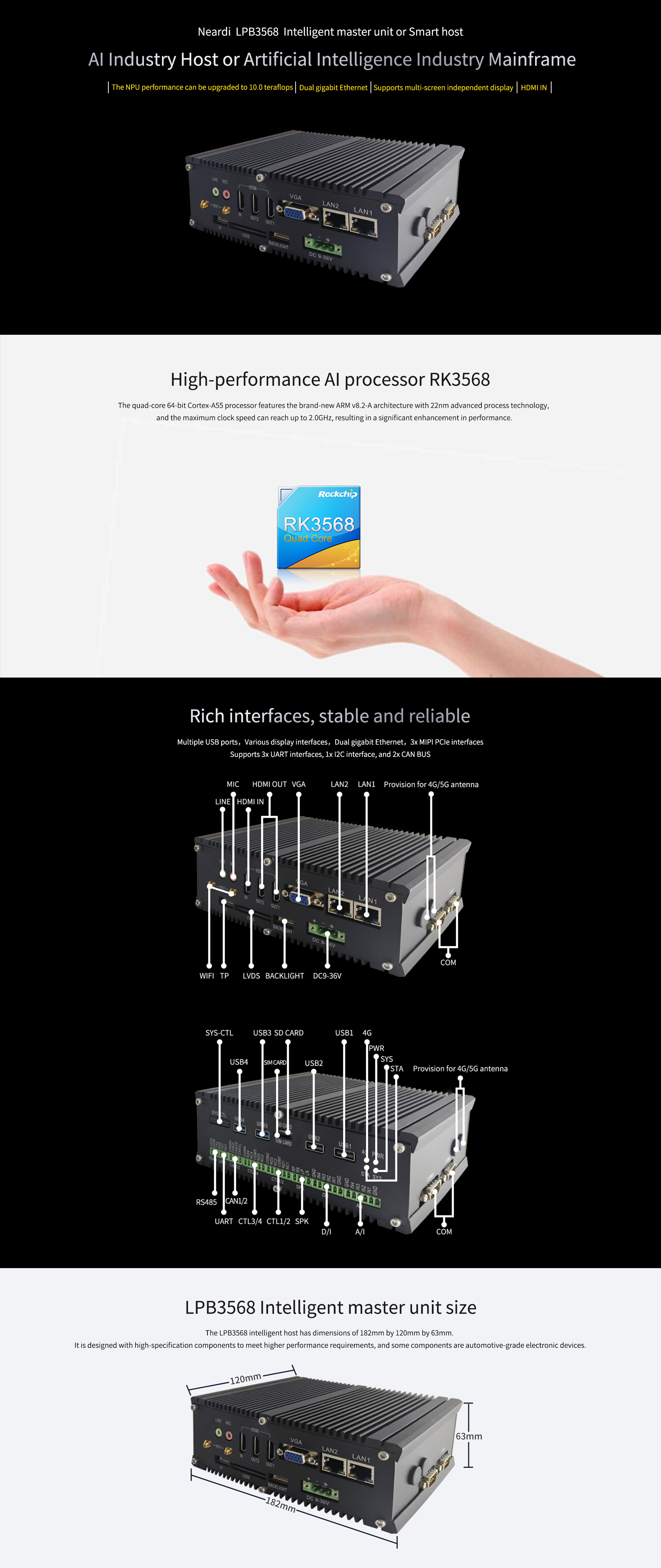

LPB3568
SOC :RK3568
Storage :2+16 GB / 4+32GB/ 8+64 GB
Size :182mm(L)*120mm(W)*63mm(H)
Product :The LPB3568 features a variety of USB interfaces, including 1 USB 3.0 HOST, 1 USB 3.0 OTG, and 2 USB 2.0 HOSTs, which support the connection of multiple USB cameras. It also has 3 mini-PCIe slots for expanding NPU computing cards, and when combined with cameras, it can provide up to 10TOPS of AI computing power. Additionally, the LPB3568 supports dual-band WiFi 6, BT 5.0, 2 Gigabit Ethernet ports, and is expandable with 4G/5G modules. It also offers a rich set of communication interfaces, including 2 high-speed UARTs, 4 RS232s, 1 RS485, and 2 CANBUS interfaces.
| Basic Parameters | |
| SOC | RK3568/RK3568J is a 22nm process technology system-on-chip (SoC) featuring a quad-core 64-bit Cortex-A55 processor with a maximum clock speed of up to 2.0GHz. |
| GPU | ARM G52 2EE, OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, high quality 2D Graphics Engine build in |
| NPU | up to 1 TOPS; INT8/INT16/FP16/BFP16 MAC hybrid operation supported；TensorFlow, TF-lite, Pytorch, Caffe, ONNX, MXNet, Keras, Darknet deep-learning frameworks supported |
| VPU | 4K VP9 and 4K H265 up to 60fps video decoding |
| 1080P up to 100fps H265/H264 video encoding | |
| 8M ISP with HDR | |
| DDR | LPDDR4/LPDDR4X RAM is available in optional capacities of 1GB, 2GB, 4GB, or 8GB. |
| eMMC | eMMC 5.1 flash storage is available in optional capacities of 8GB, 16GB, 32GB, 64GB, or 128GB. |
| PMU | RK806 |
| OS | Android / Ubuntu / Buildroot / Debian |
| Hardware Specifications | |
| Power | DC 9V - 36V |
| USB | 1*Type-A USB3.0 HOST, 1*Type-A USB3.0 OTG, 2*Type-A USB2.0 HOST |
| Display output | 2*Type-A HDMI 2.0, 1*VGA, 1*Duel channel LVDS |
| Audio | 1*φ3.5mm audio out, 1*φ3.5mm microphone, 2*Speaker output with 10W@8Ω |
| Display input | HDMI Input interface |
| PCIe | 1* mini PCIe for 2G/3G/4G/5G LTE module, 2*mini PCIe for AI cards |
| M.2 | M.2 NGFF ( M-KEY ) PCIE V2.1 x4 with NVMe SSD supported |
| SD card | Compatible with SDIO 3.0 protocol, system boot up supported |
| SIM card | Micro sim slot for Mini-PCIe 4G LTE module |
| RJ-45 | 2*10/100/1000 Ethernet |
| Connectivity | 2*Uart, 2*CAN BUS, 4*RS232, 1*RS485 |
| Input/output | 4*Relays, 4*digital input, 4*analog input |
| Other Specifications | |
| Dimensions | L*W*H(mm) 182*120*63 |
| Temperature | Operating Temperature: -20 - 75℃ |
| Weight | Approximately 1070g (excluding peripherals) |
-
